Harley Twin Cam Piston Kits CP Pistons Standard Bore and Big Bore
Twin Cam Pistons
CP Pistons, the best pistons for those that demand the
ultimate in engine performance!

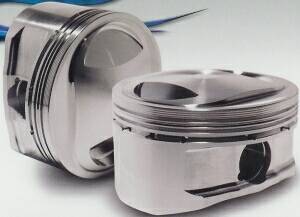

Harley Twin Cam pistons for street high performance and racing forged piston kits by CP pistons available here. We have standard bore twin cam pistons as well as big bore twin cam piston kits.CP Pistons Harley twin cam high compression piston kits are also available in several different compression ratios. These
forged pistons will work with oversize valves as well as high lift camshafts as they
include oversize valve reliefs. Along with the full radius dome designs, high
performance piston rings and high strength piston pins, these pistons offer the highest
quality and are engineered for maximum power output and dependability. Buy the best forged Harley Twin Cam pistons, buy CP Pistons forged Harley performance pistons. What is included and features of CP Pistons Twin Cam Piston Kits.
Please note: You will need to order a quantity of 2 of the part number piston you select to replace both of your existing pistons with these CP Pistons unless you are just doing a replacement of 1 cylinders existing CP Piston. Each part number listed is for 1 piston, 1 piston pin, 1 cylinders worth of piston rings and 1 set of pin locks.
CP Pistons Harley Davidson Twin Cam 88 Cubic Inch Piston Kits
1999 - 2006 Twin Cam Models
- Stock Standard Bore size is 3.750 inches
- Stock Stroke is 4.000 inches
- Available in 9.5-1 and 10.5-1 compression
Cometic top end gasket sets are available separately, but
are not included with the piston kit. The matching head gasket or complete top end gasket kit for each application
is listed in the table. |
| Bore Size |
Stroke |
C/H |
Comp. |
Dome Volume |
Installation
Notes |
Part # |
| 3.750 std |
4.000 |
1.270 |
9.5-1 |
9.9cc |
deglaze cylinder |
cp m5011 $208.75
 |
|
| 3.760 +.010 over |
4.000 |
1.270 |
9.5-1 |
9.3cc |
bore and hone cylinder |
cp m5012 $208.75
|
|
| 3.780 +.030 over |
4.000 |
1.270 |
9.5-1 |
8.6cc |
bore and hone cylinder |
cp m5013 $208.75
|
|
| 3.750 std |
4.000 |
1.270 |
10.5-1 |
18.9cc |
deglaze cylinder |
cp m5014 $208.75
|
|
| 3.760 +.010 over |
4.000 |
1.270 |
10.5-1 |
18.3cc |
bore and hone cylinder |
cp m5015 $208.75
|
|
| 3.780 +.030 over |
4.000 |
1.270 |
10.5-1 |
17.8cc |
bore and hone cylinder |
cp m5016 $208.75
|
|
CP Pistons brand Harley Twin Cam 95 Cubic Inch Piston Kits 1999 - 2006 Twin Cam Models
- Basic bore size is 3.875 inches for 95 cubic inch displacement
- Stock stroke is 4.000 inches
- Available in 9-1 , 9.5-1 , 10-1 and 10.5-1 compression ratios
- FT = Flat Top
|
| Bore Size |
Stroke |
C/H |
Comp. |
Dome Volume cc's |
Installation
Notes |
Part # |
| 3.875 |
4.000 |
1.270 |
9-1 |
FT -1.6 |
bore and hone cylinder |
cp m5070
$208.75
|
|
| 3.875 |
4.000 |
1.270 |
9.5-1 |
4.6 |
bore and hone cylinder |
cp m5017
$208.75
|
|
| 3.880 |
4.000 |
1.270 |
9.5-1 |
4.6 |
bore and hone cylinder |
cp m5018
$208.75
|
|
| 3.885 |
4.000 |
1.270 |
9.5-1 |
4.6 |
bore and hone cylinder |
cp m5019
$208.75
|
|
| 3.875 |
4.000 |
1.270 |
10-1 |
9.7 |
bore and hone cylinder |
cp m5061
$208.75
|
|
| 3.880 |
4.000 |
1.270 |
10-1 |
9.4 |
bore and hone cylinder |
cp m5062
$208.75
|
|
| 3.885 |
4.000 |
1.270 |
10-1 |
9 |
bore and hone cylinder |
cp m5063
$208.75
|
|
| 3.875 |
4.000 |
1.270 |
10.5-1 |
14.5 |
bore and hone cylinder |
cp m5020
$208.75
|
|
| 3.880 |
4.000 |
1.270 |
10.5-1 |
14.5 |
bore and hone cylinder |
cp m5021
$208.75
|
|
| 3.885 |
4.000 |
1.270 |
10.5-1 |
14.5 |
bore and hone cylinder |
cp m5022
$208.75
|
|
CP Pistons brand Harley Twin Cam 103 Cubic Inch Stroker Piston Kits 1999 - 2006 Twin Cam Models
- Basic bore size is 3.875 inches for 103 cubic inch displacement
- Stock stroke is 4.375 inches
- Available in 9.5-1 and 10-1 compression ratios
- FT = Flat Top
|
| Bore Size |
Stroke |
C/H |
Comp. |
Dome Volume cc's |
Installation
Notes |
Part # |
| 3.875 |
4.375 |
1.092 |
9.5-1 |
FT -1.6 |
bore and hone cylinder, use 4.375 stroke crank |
cp m5064
$208.75
|
|
| 3.875 |
4.375 |
1.092 |
10-1 |
1.4 |
bore and hone cylinder, use 4.375 stroke crank |
cp m5023
$208.75
|
|
| 3.880 |
4.375 |
1.092 |
10-1 |
1.4 |
bore and hone cylinder, use 4.375 stroke crank |
cp m5024
$208.75
|
|
| 3.885 |
4.375 |
1.092 |
10-1 |
1.4 |
bore and hone cylinder, use 4.375 stroke crank |
cp m5025
$208.75
|
|
CP Harley Twin Cam 96 Cubic Inch Piston Kits for 2007 and newer
- Basic bore size is 3.750 inches for 96 cubic inch displacement
- Stock stroke is 4.375 inches
- Available in 10-1 compression ratio
- 2007 and newer model engines
|
| 3.760 |
4.375 |
1.083 |
10-1 |
8 |
bore and hone cylinder |
cp m5086
$208.75
|
|
CP Harley Twin Cam 103 Cubic Inch Piston Kits for 2007 and newer
- Basic bore size is 3.875 inches for 96 cubic inch displacement
- Stock stroke is 4.375 inches
- Available in 10-1 and 10.5-1 compression ratios
- 2007 and newer model engines
|
| 3.875 |
4.375 |
1.083 |
10-1 |
5.5 |
|
cp m5080
$208.75
|
|
| 3.885 |
4.375 |
1.083 |
10-1 |
5.5 |
bore and hone cylinder |
cp m5082
$208.75
|
|
| 3.875 |
4.375 |
1.083 |
10.5-1 |
10.5 |
|
cp m5083
$208.75
|
|
| 3.885 |
4.375 |
1.083 |
10.5-1 |
10.5 |
bore and hone cylinder |
cp m5085
$208.75
|
|
Installation Notes:
- Deglaze Cylinder When replacing a piston with the same stock bore size as the original factory stock size you do not need to have your cylinder modified. We do recommend that you deglaze the cylinder. This involves running a hone through the cylinder to remove glazing and provide the best possible surface for piston ring seal. This will improve power and piston and ring life.
- Bore and Hone Cylinder When installing an oversize, big bore piston, the cylinder must be bored to the correct new bore size to allow installation of your oversize piston. The cylinder then must be finish honed to provide the proper surface for your piston and rings to work in, and provide best power and longevity.
|
|
Kit Contents
|
Standard Features included in Harley Twin Cam CP Piston Kits:
|
1 each Piston |
Double forced pin oilers
|
Fully CNC machined
|
1 each Piston Pin and locks |
Accumulator groove
|
Pin lock removal grooves
|
1 each Piston Rings (set for 1 piston) |
Anti detonation grooves
|
Balanced to + or - 1 gram
|
|
CP Pistons racing pistons are
used by top professional riders and teams, weekend warriors and street performance enthusiast.
