Our aluminum front BBC motor plate engine mounts make it easy to install any big block Chevy engine into any just about any vehicle. BBC motor plates provide a simple way to mount any BBC engine in just about any application from a street driven Hot Rod to an all out race vehicle. These big block chevy motor plates make engine installation easier and quicker. Our bbc motor plates are made from 1/4 thick 6061-T6 aluminum.
On this page you will also find information on our big block Chevy mid motor plates. BBC mid plates are available in both 13 gauge mild steel as well as 6061-T6 aluminum. Most applications that use a stock OEM type transmission cross member do not require a mid plate. In an installation using the OEM type trans X member you can just use the front BBC motor plate in combination with the factory cross member. If you are not using an original style transmission cross member, then you can install a mid plate together with the front plate.
These big block Chevy motor plates work great in all types of street and drag race vehicles, door cars, dragsters, roadsters and others. A BBC motor plate offers a simple way to mount a different engine than what may have come in the vehicle you are working on. Using BBC motor plates enables you to install a BBC engine into any make of vehicle. These aluminum front engine mount BBC motor plates also work well for street rods, hot rods, custom cars, "Pro-Street" type vehicles, mud trucks and more..
For installation information please click How to Install a BBC Motor Plate

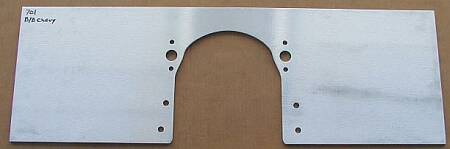

Big block Chevy motor mounting plate #CE701 shown above
Aluminum BBC Motor Plate Models
The bbc motor plates listed here are 1/4" thick 6061 T6 Aluminum
|BBC Motor plate 12" X 36"||
|Profile cut Big Block Chevy Motor Plate||
We also sell BBC mid plates made of either mild steel or aluminum. These mid plates mount between the back of the engine block and the transmission bellhousing. The mid plate spans the area between the frame rails and you bolt it to brackets you provide and attach to the vehicles frame rails.

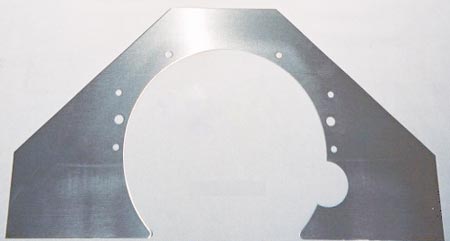

Chevy Mild Steel Mid Plate CE2005
13 gauge mild steel Big Block Chevy and GM Mid Motor Plates
|ce 2005||Big Block Chevy mid plate, steel, 16" X 30"|
|ce 2006||Buick Chevy Pontiac Oldsmobile mid plate, steel, 16" X 30" This plate has multiple mounting holes to accommodate each of these different engine bolt patterns.|
6061-T6 Aluminum BBC Mid Motor Plates
|800||Big Block Chevy mid plate, aluminum, 3/16" x 20" x 30"|
|801||Universal fit mid plate, aluminum, 1/4" x 24" x 24" with a 6" hole,|
|802||BBC mid plate, aluminum, 1/4" x 24 x 24 with all holes Chevy|
For Chevy mid plate mounting installation information click Big Block Chevy Mid Plate Installation
