5.7 Hemi Stroker Kit

Why install a 5.7 Hemi stroker kit? As produced by Chrysler, the Gen 3 5.7 Hemi is a very versitile powerplant, found in everything from high performance cars like the Challenger and Charger to heavy duty work trucks. As hot rodders and racers we are never happy with an engine as delivered from the factory as we know there is always more power available. The 5.7 has many advantages which make it an ideal choice for a performance or racing engine. The Gen 3 Hemis are good basic engines which are light, compact and easy to come by and relatively inexpensive.

One of the best ways to gain significantly more power is to install a 5.7 Hemi stroker kit. We have a wide range of rotating assembly kits available and if you do not see one that meets your exact needs, we are happy to mix and match components to piece together a kit so you can get exactly what you want. On this page you will find stroker kits for the 5.7 Hemi that can be used in restored musclecars, modern high performance cars and trucks, to all out drag racing and other competition vehicles.

If you are building an engine but do not want to purchase a complete stroker kit, we sell all of the 5.7 Hemi performance parts required to complete a rotating assembly separately.

Buy with confidence from Campbell Enterprises. In business since 1989 we offer technical assistance if you need help, dedicated customer service, quick shipping and affordable prices on top quality aftermarket performance parts..

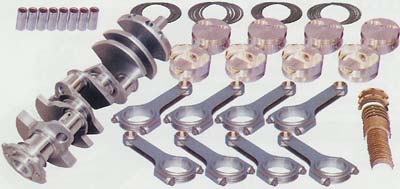

5.7 Hemi Stroker Kit, What is included?

Our 5.7 Hemi stroker engine kits offer a great combination of performance, dependability and affordability. All of our kits are intended for use as an internal balance assembly. Each kit includes:

• 4340 forged steel crank
• 4340 Billet H beam rods with ARP2000 bolts
• Forged pistons
• Premium piston ring set
• High Performance main bearings
• High performance rod bearings

See the specification list for the exact parts included in any particular kit. We use only top premium parts in our kits. If you have any questions about the parts included in a kit please do not hesitate to contact us for clarification. We look forward to assisting you with a Gen 3 stroker kit for 5.7 Hemi.

5.7 Hemi Specs

• 5.7L 345 cubic inches stock bore size is 3.917 and stock stroke is 3.580
• 6.243 stock connecting rod length
• .945 stock piston pin diameter
• Stock engine block deck height is 9.250 inches

Cubic Inch Displacement of 5.7 Hemi Stroker Engines

The kits on this page will provide the following total cubic inch displacements based on these cylinder bore sizes:

• 3.917 = 393.32 cubic inches. This size 5.7 stroker is often referred to as the modern 392 Hemi due to the popularity of the original Chrysler 392 Hemi name.
• 3.927 = 395.33
• 3.937 =  397.35
• 3.947 =  399.37

Campbell Enterprises Select Series Stroker Kits for 5.7 Hemi Engines These 5.7 Hemi stroker kits contain various top quality brand parts selected by us to provide superior performance at an affordable price. In addition to the very popular 392 stroker kit for 5.7 hemi we offer the parts needed to build many other displacement size engines. There are many choices of crankshaft strokes and pistons for many cylinder bore sizes so you are not limited to just the 392 cid option. If you are serious about getting large gains in performance from your 5.7 engine, then these kits include the components to help you reach that goal. These kits provide a strong foundation for you to build your engine around. For serious high performance and racing applications Molnar Technologies 4340 forged steel crankshaft Molnar Technologies 4340 billet H beam rods with ARP2000 bolts Forged pistons and rings as noted in table Kits must be balanced before installation, intended for internal balance use. Balancing available before shipping as an added cost option. CID = final stroker engine displacement size as measured in cubic inches Reluctor ring is NOT included but is available separately further down this page
5.7 Hemi Stroker Kit | Part Numbers and Specifications
CID	Bore Size	Crankshaft Type & Stroke	Rod Length and Type	Piston	Compression ratio with cylinder head chamber volume of:			Kit #
					65cc	73cc	85cc
393	3.917 stock	4340 forged steel 4.080 stroke	6.125 H-Beam	Wiseco -22cc	9.5	8.9	8.0	57408WM22XS
				Wiseco -8cc	11.0	10.1	9.0	57408WM8XS
				Wiseco +12cc			11
395	3.927 .010 over	4340 forged steel 4.080 stroke	6.125 H-Beam
397	3.937 .020 over	4340 forged steel 4.080 stroke	6.125 H-Beam	CP -10.3cc			9.25	57408CM10X2
				CP +5cc			10.75
399	3.947 .030 over	4340 forged steel 4.080 stroke	6.125 H-Beam









345 Dodge and Chrysler 5.7 Hemi Pistons Wiseco Chrysler Dodge 5.7 Hemi Piston Features Forged pistons made from high strength 2618 Alloy. Will not shatter like hypereutectic or cast pistons. Strong, strutted skirt is specially designed to run at as little as .004” clearance, with excellent skirt wear and minimal noise or rock. Radiused Valve Pockets for detonation resistance and increased flow around valves. Anti-detonation Grooves help keep the top ring groove free of carbon. 1.2mm Nitride steel top ring, 1.2mm Napier 2nd, and Nitride 3mm oil for reduced friction for more horsepower. Pressure Groove for enhanced ring seal. Features Chrome Moly Pins and Spirolox®. (Tool steel pins optional.) Brush domes require minimal deburring by the engine builder. Wiseco ArmorGlideTM skirt coated for lower friction, reduced noise, and superior life. Explanation of Wiseco 5.7 Hemi piston specs listed below: Bore = Finished cylinder bore size in inches that piston is designed to work in Stroke = Crankshaft stroke in inches that piston is designed to work with Rod = Connecting rod length in inches that piston is made to work with CH = Compression Height, also known as compression distance. This is the dimension, in inches, from the centerline of the pin bore to the top deck of the piston Wt = weight in grams of one piston Pin = pin diameter in inches, all pins 2.250" long CCs = cc displacement in total of the valve reliefs, and any dish or dome Compression Ratio = static compression ratio comparison of piston when used with different volume cylinder head chambers. Stock 5.7L Hemi heads built through 2008 had a 85cc chamber. 2009 and newer 5.7L heads have a 65cc chamber. 6.1 Hemi heads are 73cc Piston Ring Set = part number for a complete engine set of plasma moly file fit piston rings, ring widths are 1.0mm, 1.2mm, 2.8mm. The rings listed here are for use with the Wiseco pistons listed beside them. Piston and Ring Set = part number for a complete set of 8 forged pistons, piston pins, spiro locks and piston rings
Bore	Stroke	Rod	CH	Wt	Pin	CCs	Compression Ratio			Piston and Ring Set
							65cc	73cc	85cc
3.937 .020 over	4.080	6.125	1.080		.866	-22	9.5	8.9	8.0
3.917 std	4.080	6.125	1.080	401	.866	-8	11.0	10.1	9.0	K465XS $970.14 $958.50  + DISCOUNTED SHIPPING! Shipping in the USA for this item is only $29.95 when you spend $499.00 or more!
3.937 .020 over	4.080	6.125	1.080	403	.866	-8	11.0	10.1	9.0	K465X2 $970.14 $958.50  + DISCOUNTED SHIPPING! Shipping in the USA for this item is only $29.95 when you spend $499.00 or more!
3.917 std	4.080	6.125	1.080	423	.866	+12			11.0	K468XS $970.14 $958.50  + DISCOUNTED SHIPPING! Shipping in the USA for this item is only $29.95 when you spend $499.00 or more!
3.937 .020 over	4.080	6.125	1.080	428	.866	+12			11.0	K468X2 $970.14 $958.50  + DISCOUNTED SHIPPING! Shipping in the USA for this item is only $29.95 when you spend $499.00 or more!





Stroker 5.7 Hemi Pistons CP Bullet Series



Bullet Series 5.7L Hemi Forged Pistons

If you have made the decision to build a 5.7 Hemi stroker, then we suggest you consider the Bullet Series piston and ring sets from CP Carrillo. The Bullet Piston series incorporates everything that has made CP the industry leader in 5.7 and 6.1 Hemi forged pistons. The Bullet Series modern Dodge hemi stroker pistons were conceived as a high quality piston set available at a reasonable price. Exhaustive R&D, specifically designed forgings and centralized manufacturing allows CP to succeed at reaching their lofty goal of high quality at affordable prices. More general information is available here: CP Bullet Forged Pistons Index



CP Carrillo 5.7 Hemi Piston and Ring Set Features

• Set of pistons balanced within 1 gram
• 2618 alloy for strength and durability
• Dual forced pin oilers
• Contact reduction grooves
• Accumulator groove
• Forged side relief
• FEA designed forging
• Tight tolerances
• Same manufacturing process as CP Pistons
• Rigorous quality control
• ISO 9000 certified



Contents of 5.7L Hemi and 6.1L Hemi Piston and Ring Sets:

• 8 forged pistons 2618 Alloy
• 8 high quality chrome moly piston pins
• 1 set of piston pin retention wire lock rings
• 1 piston ring set with gas nitrited steel top rings, Napier back cut 2nd rings and soft nitrited oil rings



CP Bullet Pistons for for 5.7 Hemi Specs Engine Block OEM Chrysler, Dodge, Mopar 5.7L and 6.1L Hemi, as well as aftermarket race blocks based on these OEM spec blocks Bore = Finished bore size piston set is designed to work in Stroke = Crankshaft stroke piston is designed to work with CID = Final cubic inch displacement of engine based on this bore and stroke Rod = Rod length piston is designed to work with CD = Compression Distance Head Type Cylinder head types pistons are designed to work with, includes OEM and aftermarket heads made with OEM style chambers, valve angles and valve locations Disp = Net Displacement of the piston valve reliefs, dish and/or dome  in ccs Comp =  Compression as calculated with a 85cc head chamber volume, + .020" deck height and 8.6cc displacement head gaskets for 5.7 hemi heads and 72.5cc chamber, + .020" deck and 8.6cc gaskets for 6.1 Hemi heads Piston pins .866 x 2.250 Valve Relief Depths =  Intake .160", Exhaust .045" Piston ring grooves are 1.5mm x 1.5mm x 3mm For Reference Stock Chrysler Dodge Mopar Modern Hemi bore and stroke specs as follows: 345 cid 5.7 L Hemi = 3.917 x 3.580 , 370 cid 6.1 L = 4.055 x 3.580 We recommend K1 Technologies 5.7 6.1 Hemi Rods and K1 Stroker cranks for use with these piston kits. The rod and crank info is listed below this piston chart.
Block / Bore	Stroke / CID	Rod	CD	Head Type	Disp	Comp	Part #
5.7 Hemi .020 oversize 3.937	4.080 397 ci	6.125	1.095	5.7 Hemi	-10.5cc	8.7	BH57-925-020 $1095.00 $974.55
5.7 Hemi .020 oversize 3.937	4.080 397 ci	6.125	1.095	5.7 Hemi	+4.6cc	10	BH57-1075-020 $1095.00 $974.55



5.7 Hemi Stroker Crankshafts

Molnar Technologies is taking the lead in producing several superior quality Gen 3 Hemi crankshafts. These premium 4340 forged steel cranks are for use in the modern EFI Chrysler and Dodge 5.7, 6.1 and 6.4 Hemi engines. These cranks are the ones that we use in the majority of our 5.7 Hemi stroker kit rotating assemblies.

We are proud to be a distributor for the entire Molnar Technologies product line which includes premium cranks and rods for the Gen3 Hemi engines. These gen 3 Hemi cranks are machined from extremely strong 4340 forged steel forgings and held to very tight machining tolerances. They are a great combination of strength and performance at a reasonable price.

Molnar Gen3 Hemi Stroker Kits

If you are looking for all the parts for a complete 5.7L Hemi stroker kit instead of just a crankshaft, you can find all of those parts on our website here: Molnar Technologies 5.7 Hemi Stroker Kits

Forged Chrysler Dodge Gen3 Hemi Stroker Cranks

Molnar Technologies 4340 Steel Forged EFI Gen 3 Hemi Crank Specs

These crankshafts will fit in the modern, Gen 3 EFI Hemi engines which include engines with stock displacements of 5.7 liter, 6.1 liter  and 6.4L. The factory cylinder bore size is the main difference in the factory displacement of the 5.7 and 6.1 while the 6.4 has a unique bore and stroke.

OEM Gen3 Hemi Stock bore and stoke dimensions:

• 5.7 Bore 3.917 inches Stroke  3.578 inches
• 6.1 Bore 4.055 inches Stroke  3.578 inches
• 6.4 Bore 4.090 inches Stroke 3.720 inches

Buy the best Gen3 Hemi cranks available from Molnar Technologies here and get dedicated customer service, technical assistance if you need help, unbeatable prices and fast shipping of all in stock items.

Molnar Technologies Gen 3 Hemi Crankshaft Features

• 4340 forged premium steel construction
• Nitrided main and rod journal surfaces for superior wear resistance
• Multi stage heat treatment
• Core hardened
• Nitrided
• Mag-Particle Inspected
• Straight oil holes for best rod journal lubrication
• Precision machined to extremely tight tolerances
• Material properties are monitored closely to insure optimum performance
• Counterweight placement designed for improved crankshaft performance
• .125" radius on both the connecting rod and main journals for increased strength
• Precision ground and micro-polished journals
• Chamfered oil holes for improved oiling
• Indexed for correct stroke
• Excellent choice for any Gen 3 Hemi stroker kit

These crankshafts will fit Chrysler and Dodge, 5.7 liter, 6.1 liter, and 6.4 Liter Gen 3 Hemi engines. The main difference in these 3 engines from the factory is the cylinder bore size and crankshaft stroke.

4340 Forged Steel 5.7, 6.1, 6.4 Hemi Chrysler Dodge Crankshaft Specs



Gen 3 Dodge 5.7, 6.1 and 6.4 Hemi Stroker Cranks by Molnar Technologies Stroke Crankshaft stroke length in inches Notes Additional information about specific applications Pin Crank rod pin / rod journal diameter in inches Main All of these cranks use the stock main journal size of 2.559" Min Rod Recommended minimum rod length in inches Bob Approximate bob weight in grams
Chrysler Dodge EFI Gen3 HEMI Cranks
Stroke	Notes	Pin	Min Rod	Bob	Part Number
3.593	Chrysler Drag Pack Hemi Crank with 2.100" rod pins (**NHRA Approved**)	2.100	6.000	1850	345-3593JB6F $1192.13 $1029.64  + DISCOUNTED SHIPPING! Shipping in the USA for this item is only $99.95 when you spend $599.00 or more!
3.795	(**NHRA Approved**)	2.100	6.000	1850	345-3795JB6F $1192.13 $1029.64  + DISCOUNTED SHIPPING! Shipping in the USA for this item is only $99.95 when you spend $599.00 or more!
3.900		2.000	6.125		345-3900JA6F $1192.13 $1029.64  + DISCOUNTED SHIPPING! Shipping in the USA for this item is only $99.95 when you spend $599.00 or more!
3.900		2.100	6.125		345-3900JB6F $1192.13 $1029.64  + DISCOUNTED SHIPPING! Shipping in the USA for this item is only $99.95 when you spend $599.00 or more!
4.000		2.100	6.125	1850	345-4000JB6F $1192.13 $1029.64  + DISCOUNTED SHIPPING! Shipping in the USA for this item is only $99.95 when you spend $599.00 or more!
4.050		2.000	6.125	1800	345-4050JA6F $1192.13 $1029.64  + DISCOUNTED SHIPPING! Shipping in the USA for this item is only $99.95 when you spend $599.00 or more!
4.080		2.000	6.125	1800	345-4080JA6F $1192.13 $1029.64  + DISCOUNTED SHIPPING! Shipping in the USA for this item is only $99.95 when you spend $599.00 or more!
4.250		2.000	6.125	1800	345-4250JA6F $1192.13 $1029.64  + DISCOUNTED SHIPPING! Shipping in the USA for this item is only $99.95 when you spend $599.00 or more!



Molnar Technologies Chrysler and Dodge Gen 3 Hemi Reluctor Rings

For use with Molnar Technologies Gen3 Hemi Crankshafts
Description	Part #
This reluctor gear is the correct one to use with Molnar Technologies Gen 3 Hemi stroker cranks in engines requiring a 32 tooth reluctor. It uses a 4 bolt attachment which is the same as the OEM Chrysler 6.1 crankshaft. The 2003 - 2008 5.7 and 6.1 used the 32 tooth wheel.	MRR-32 $169.95 $146.79  + DISCOUNTED SHIPPING! Shipping in the USA for this item is only $99.95 when you spend $599.00 or more!
If you have a 2009 or newer Gen3 Hemi with a 58 tooth reluctor and a Molnar Technologies crankshaft, this is the correct gear for you. (NOTE: Some people count the teeth on the 2009 and later as 60, but difference is only in how people count the large teeth, so even though some people say 58 and some 60, they are both the same reluctor)	MRR-60 $169.95 $146.79  + DISCOUNTED SHIPPING! Shipping in the USA for this item is only $99.95 when you spend $599.00 or more!
2013 and Newer: Chrysler / Dodge changed the OEM reluctor and engine management system in 2013. If you are working with a 2013 or newer vehicle and a Molnar Technologies crankshaft, then this is the proper 58 tooth reluctor to use.	MRR-6013 $169.95 $146.79  + DISCOUNTED SHIPPING! Shipping in the USA for this item is only $99.95 when you spend $599.00 or more!







Molnar Hemi 5.7 Connecting Rods Length Length of the connecting rod, as measured center to center, in inches. Weight Weight in grams, of one complete connecting rod assembly Notes Additional information about specific applications Bolt Size Bolt diameter in inches, Rods come with ARP2000 fasteners installed Rod Jrnl Size Crank rod journal diameter Pin Size Piston pin diameter, in inches or millimeters BE Width Width of the crankshaft end of one rod PE Width Width of the piston end of one rod Part Number Molnar Technologies Connect Rod set part number Price The price shown is for a complete set of rods for the engine.
Rod Length	Weight	Description	Bolt Size	Rod Jrnl Size	Pin Size	BE Width	PE Width	Part Number
Chrysler Dodge Mopar Gen3 5.7 6.1 and 6.4 Hemi
Length	Weight	Description	Bolt Size	Rod Jrnl Size	Pin Size	BE Width	PE Width	Part Number
6.125	608	.866 pin diameter Use CB-663H or equivalent bearing	3/8	2.000	0.866 22mm	0.930	0.930	DH6125LFB8-A $803.53 $694.01  + DISCOUNTED SHIPPING! Shipping in the USA for this item is only $29.95 when you spend $495.00 or more!
6.125	668	Gen III Hemi Turbo Rod with .866 pin	7/16	2.000	0.866 22mm	0.930	1.000	DH6125LFB-T8-A $844.12 $729.07  + DISCOUNTED SHIPPING! Shipping in the USA for this item is only $29.95 when you spend $495.00 or more!
6.125	664	Gen III Hemi Turbo Rod with .927 pin	7/16	2.000	0.927	0.930	1.000	DH6125LLB-T8-A $844.12 $729.07  + DISCOUNTED SHIPPING! Shipping in the USA for this item is only $29.95 when you spend $495.00 or more!
6.200	629	Gen III Hemi Std Wt Use CB-1657AL or equivalent bearing	7/16	2.100	0.927	0.930	1.000	DH6200NLB8-A $803.53 $694.01  + DISCOUNTED SHIPPING! Shipping in the USA for this item is only $29.95 when you spend $495.00 or more!
6.200	628		3/8	2.000	0.927	0.930	0.900	DH6200LLB8-A $803.53 $694.01  + DISCOUNTED SHIPPING! Shipping in the USA for this item is only $29.95 when you spend $495.00 or more!
6.200	680	Gen III Hemi Turbo Rod	7/16	2.100	0.927	0.930	1.000	DH6200NLB-T8-A $844.12 $729.07  + DISCOUNTED SHIPPING! Shipping in the USA for this item is only $29.95 when you spend $495.00 or more!
6.200	634	NHRA Drag Pak Legal	7/16	2.100	0.927	0.940	1.000	DH6200NLB-DP8-A $803.53 $694.01  + DISCOUNTED SHIPPING! Shipping in the USA for this item is only $29.95 when you spend $495.00 or more!
6.200	627	6.4L Factory replacement length and journal size but with .927 wrist pin	7/16	2.125	0.927	0.934	0.900	DH6200TLB8-A $803.53 $694.01  + DISCOUNTED SHIPPING! Shipping in the USA for this item is only $29.95 when you spend $495.00 or more!
6.242	621	5.7L and 6.1L Factory replacement length and journal size but with .927 wrist pin	7/16	2.125	0.927	0.934	0.900	DH6242TLB8-A $803.53 $694.01  + DISCOUNTED SHIPPING! Shipping in the USA for this item is only $29.95 when you spend $495.00 or more!

If you do not see a kit with the 5.7 Hemi specs you need:

We offer a large variety of Mopar, Chrysler, Dodge Hemi 5.7 stroker kit assemblies, We also offer custom piston options. If you do not see a kit that includes the items you want, or you need a different bore size or compression piston, please contact us and we will be happy to help you with a custom configured 5.7 Hemi stroker kit.
